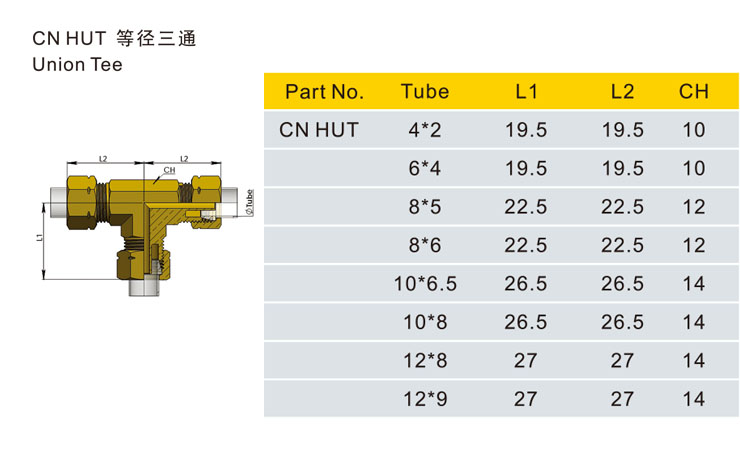

Series CN Compression Fittings > Union Tee

Tube OD:
    04,06,08,10,12,14,16,18,22,24mm
    1/8,1/4,3/8,1/2,5/8,3/4 Inch
Connections:
    M5,G1/8,G1/4,G3/8,G1/2,G3/4
    R1/8,R1/4,R3/8,R1/2,R3/4
    N1/8,N1/4,N3/8,N1/2,N3/4
G=BSPP  Conform  ISO 228
R=BSPT  Conform  ISO 7
N=NPT   Conform  SAE AS 71051:1999

    Commprise fitting sealing effect nested perfect,with easy to install,compact appearance of the characteristics of a variety of material applicable to the management of products.The type of fittings with excellent pressure resistance.Pipediameter and materials in accordance with different types if fittings in the maximum working pressure up to 50 bar,operating temperature from-
