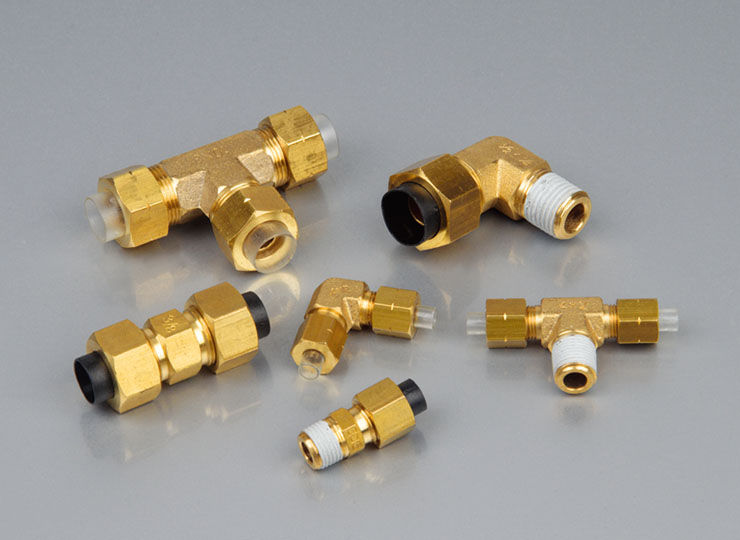

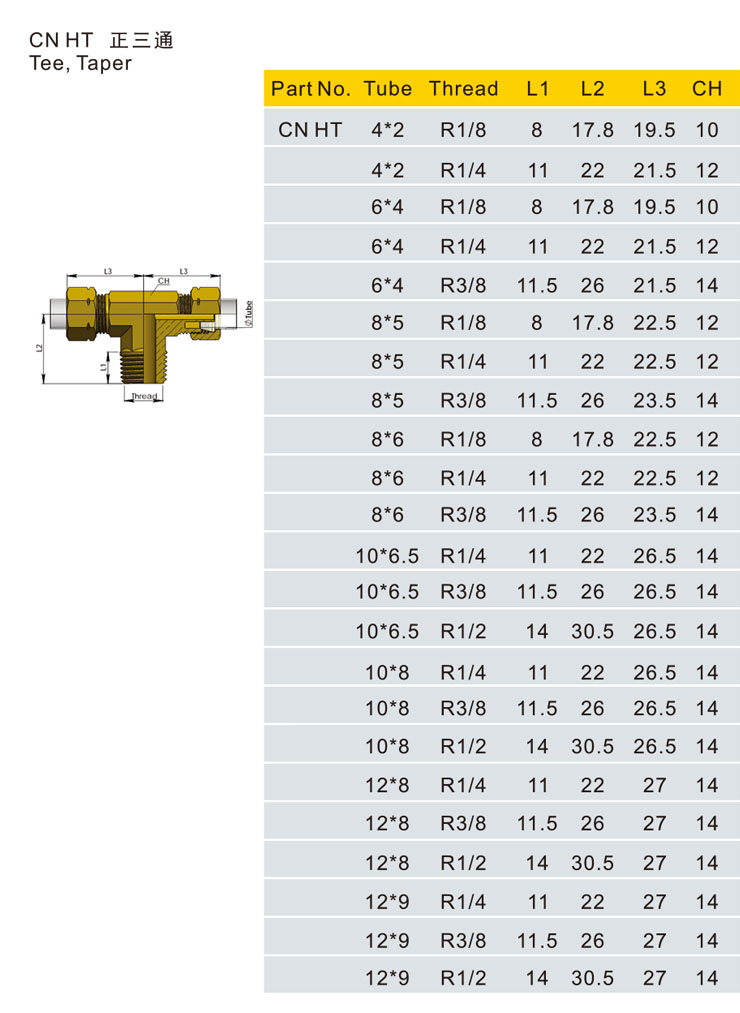

Series CN Compression Fittings > Tee Taper
Tube OD:
04,06,08,10,12,14,16,18,22,24mm
1/8,1/4,3/8,1/2,5/8,3/4 Inch
Connections:
M5,G1/8,G1/4,G3/8,G1/2,G3/4
R1/8,R1/4,R3/8,R1/2,R3/4
N1/8,N1/4,N3/8,N1/2,N3/4
G=BSPP Conform ISO 228
R=BSPT Conform ISO 7
N=NPT Conform SAE AS 71051:1999
04,06,08,10,12,14,16,18,22,24mm
1/8,1/4,3/8,1/2,5/8,3/4 Inch
Connections:
M5,G1/8,G1/4,G3/8,G1/2,G3/4
R1/8,R1/4,R3/8,R1/2,R3/4
N1/8,N1/4,N3/8,N1/2,N3/4
G=BSPP Conform ISO 228
R=BSPT Conform ISO 7
N=NPT Conform SAE AS 71051:1999

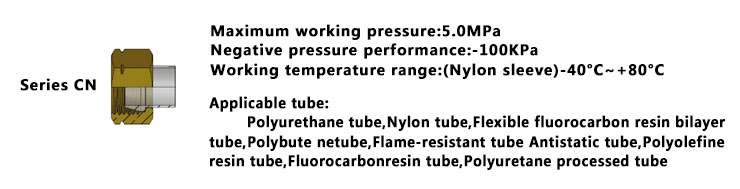

Commprise fitting sealing effect nested perfect,with easy to install,compact appearance of the characteristics of a variety of material applicable to the management of products.The type of fittings with excellent pressure resistance.Pipediameter and materials in accordance with different types if fittings in the maximum working pressure up to 50 bar,operating temperature from-
