Pneumatic Quick Couplings > Series 21 Mini Type Pneumatic Quick Couplings
Flow Capacity:530L/Min
Nominal flow dia:5mm

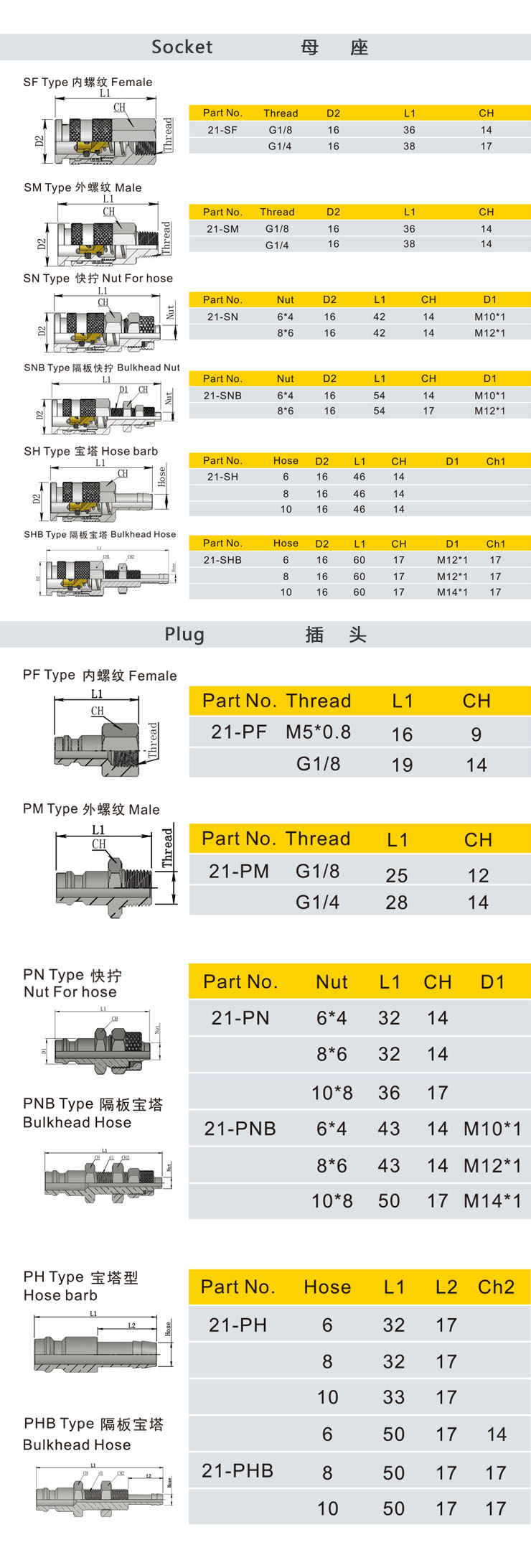

Material:
Socket:Nickel-plated brass
Plug:Nickel-plated brass
Temperature range(NBR):-20°C ~ 80°C
Max.working pressure:35 Bar
Standard and Compatibility:
利达时Rectus 21、90 ,乐可利 Legris series 21
康茂胜 Camozzi,Bosch size 2,
Feature:
One-hand operated
Mini size
Nominal flow dia:5mm
Material:
Socket:Nickel-plated brass
Plug:Nickel-plated brass
Temperature range(NBR):-20°C ~ 80°C
Max.working pressure:35 Bar
Standard and Compatibility:
利达时Rectus 21、90 ,乐可利 Legris series 21
康茂胜 Camozzi,Bosch size 2,
Feature:
One-hand operated
Mini size
Optional double shut-off
