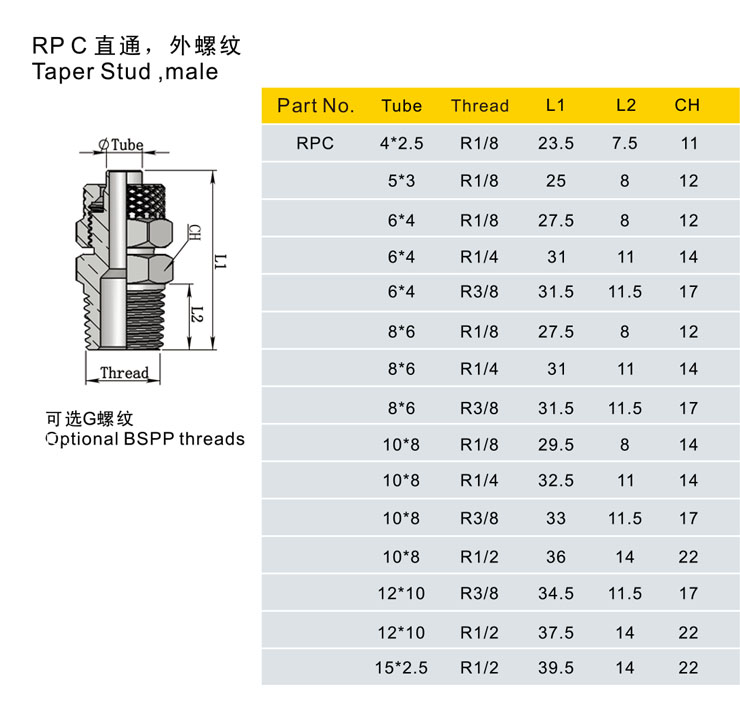

Rapid Fittings For Plastic Tubes > Taper Stud Male
Rapid Fittings For Plastic Tubes is easy to connect tube installed in the pipe fittings,generally do not ndde to use the wrench.You can also use a hard nylon tubes.Locking nut can be tightened by hand,also can be tinhtened by wrench.Connector orientation on the cone to ensure that the tube is not accidentally cut off.
Tube OD*ID:
5*3，6*4，8*6，10*8，12*10，15*12.5mm
Connections:
M5,G1/8,G1/4,G3/8,G1/2,R1/8,R1/4,R3/8,R1/2
Fluid:Compressed Air Low Pressure Fluids.
Tube OD*ID:
5*3，6*4，8*6，10*8，12*10，15*12.5mm
Connections:
M5,G1/8,G1/4,G3/8,G1/2,R1/8,R1/4,R3/8,R1/2
Fluid:Compressed Air Low Pressure Fluids.
Working pressure:15Bar
